Tunnel System

Overview- A set of connecting Shafts & Tunnels all over London have been scanned for their location and details to create 3D models of each Shaft and the connecting Tunnels. After creating the design it was scaled down to a reasonable size to 3D print and display in a large acrylic box.

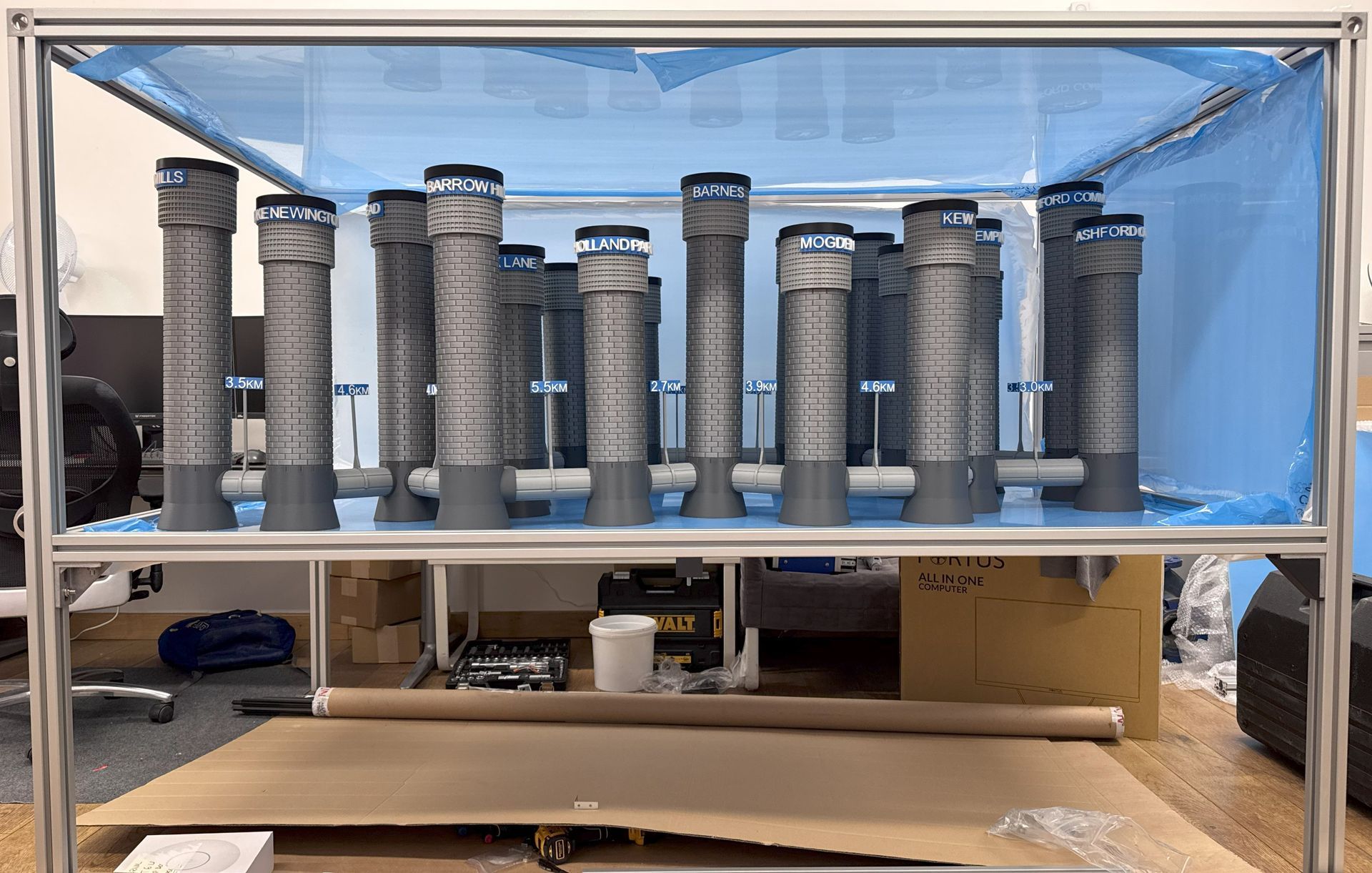

The entire display was built in house, then disassembled and reassembled in the clients office for others to see, enjoy, discuss and learn from.

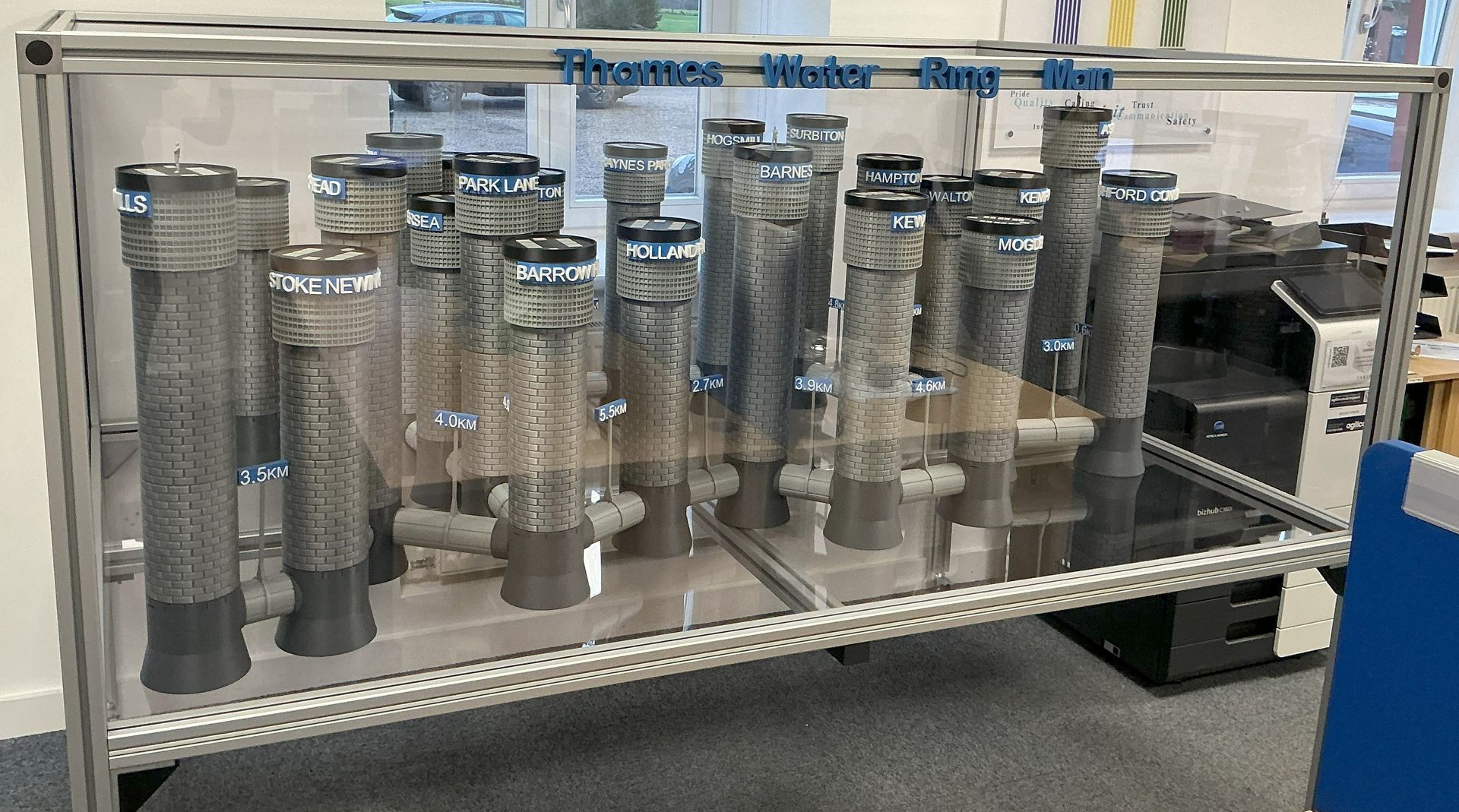

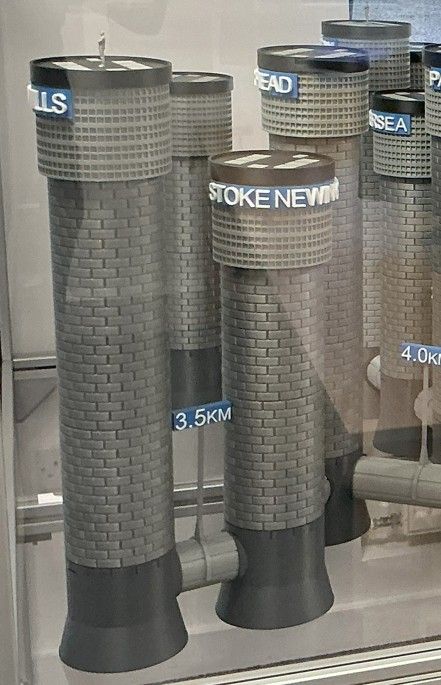

3D Print Process- From the 3D model a scaled version was 3D printed, assembled and later connected together in their set pattern and displayed in a large see through acrylic box. This project consisted of 880 separate Parts and 0ver 7500 meters of Material.
